How to Improve AI-Generated 3D Models for Perfect 3D Printing (Detailed Guide)

3D models generated with AI are amazing, but sometimes they need a bit more detail for perfect 3D printing. In this guide, I'll show you exactly how to improve your 3D AI Studio models using Blender - and the best part? It's completely free!

Want to see this process in action? Check out the full video tutorial that inspired this guide!

What We'll Cover

• Converting texture details into actual geometry
• Adding subdivisions for better detail
• Fine-tuning with displacement modifiers
• Quick sculpting fixes
• Preparing for 3D printing

Starting Point: The Problem

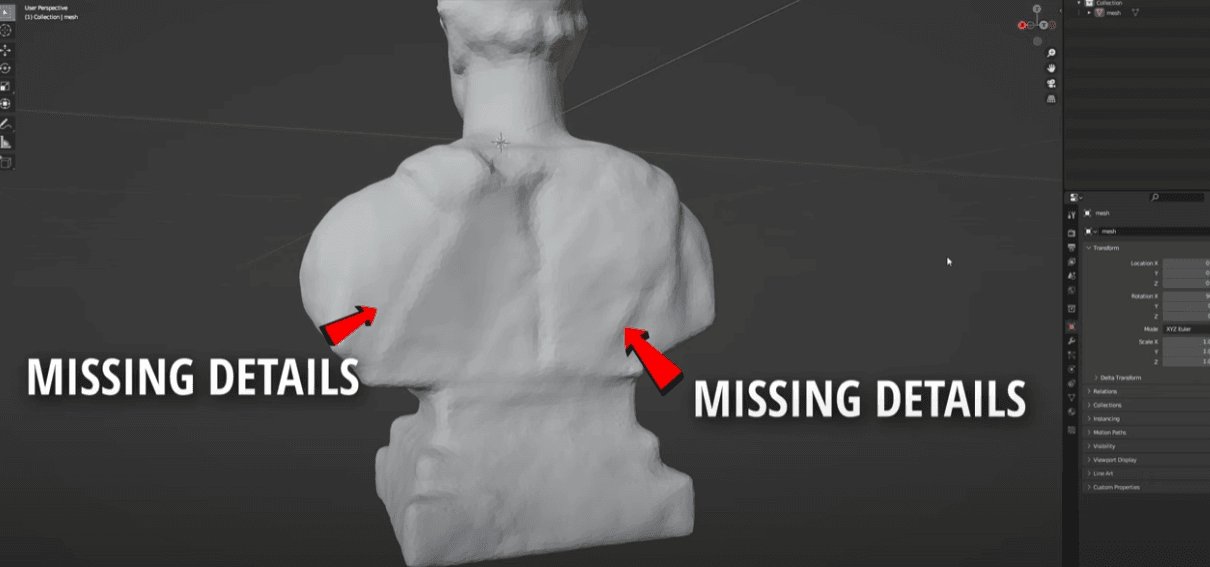

AI-generated models often have detailed textures but simpler geometry. Look at this example:

Notice how the texture shows lots of detail, but the actual 3D model is smoother than it should be? Let's fix that!

Step 1: Preparing Your Model in Blender

1. Open Blender and delete the default cube
2. Import your model: File > Import > Wavefront (.obj)
   • OBJ files are recommended as they include UV information
3. Check texture visibility:
   • Hold Z key
   • Hover over "Material Preview"
   • Release Z to see textured view

If your texture isn't visible:

1. Switch to Shader Editor
2. Select your model
3. Manually locate and assign the texture

Step 2: Adding the Displacement Modifier

This is where the magic happens! We'll use the texture to create real geometry:

1. Select your model
2. Go to Modifier tab (wrench icon)
3. Add Modifier > Displacement
4. Click "New" in the modifier settings

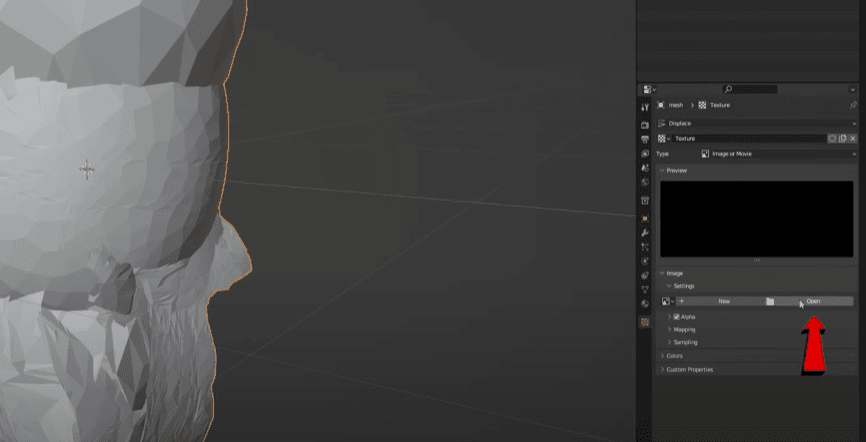

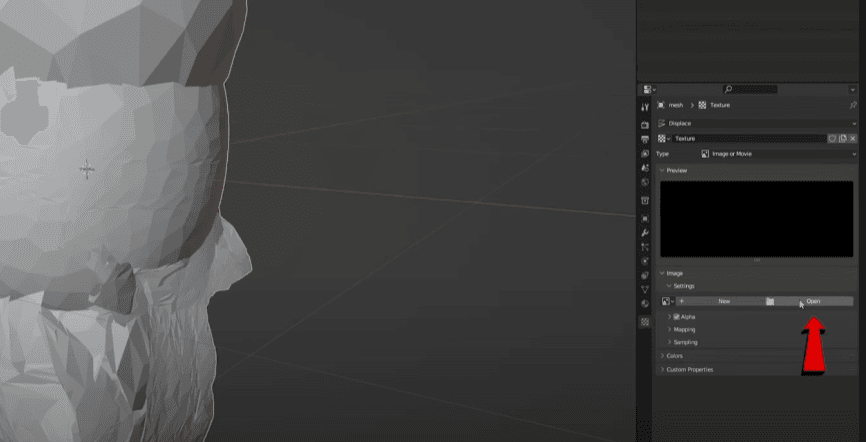

5. In Texture tab, click "Open"
6. Select your model's texture file

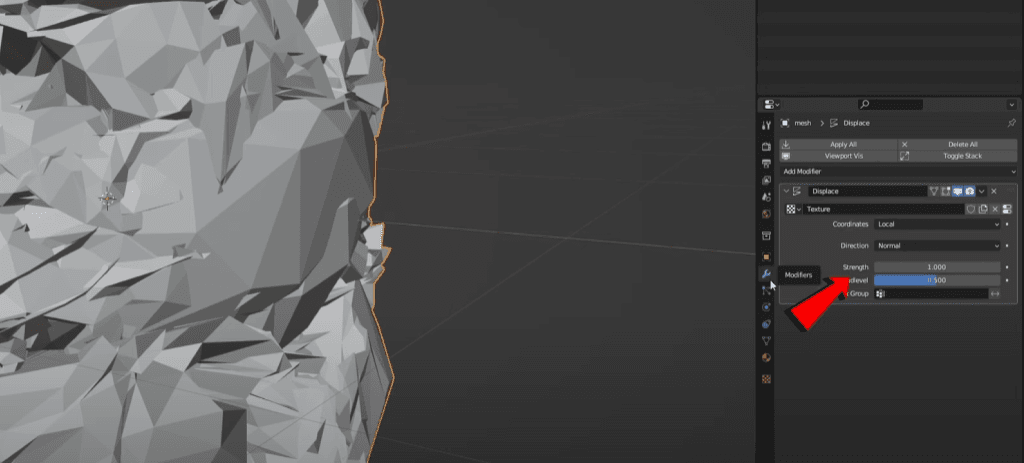

Important settings:

• Start with Strength: 0.01
• Change Coordinates from "Local" to "UV"
• Mid Level: Set to 1.0

Step 3: Adding Subdivision Surface

Now we'll add more geometry for better detail:

1. Add Subdivision Surface modifier
2. Move it BEFORE displacement:
   • Expand arrow in modifier
   • Click "Move to First"

Pro tips:

• Start with 2 levels of subdivision
• Increase gradually while watching performance
• Don't go too high - your computer might crash!

Step 4: Fine-Tuning the Details

Adjust these settings until the model looks perfect:

1. Displacement Strength:

   • Increase for more pronounced details
   • Try negative values if needed
   • Sweet spot is usually between 0.01 and 0.05

2. Mid Level:

   • Keep at 1.0 for most models
   • Adjust only if shape seems off

Step 5: Optional Sculpting Fixes

Some areas might need manual touches:

1. Switch to Sculpting workspace
2. Use these basic tools:
   • Draw (add material): Left click
   • Subtract: Ctrl + Left click
   • Smooth: Shift + Left click

Quick tips:

• Press F to change brush size

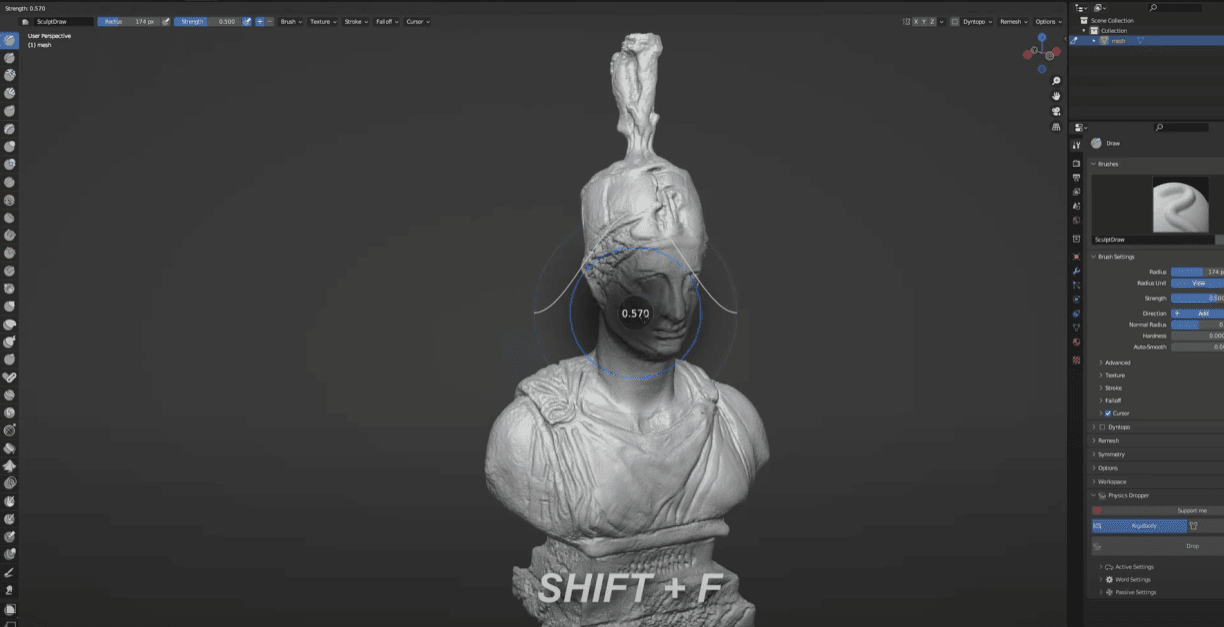

• Shift + F for brush intensity
• Focus on obvious problems only

Step 6: Exporting for 3D Printing

Almost done! Let's export properly:

1. Return to Layout workspace
2. Select your model

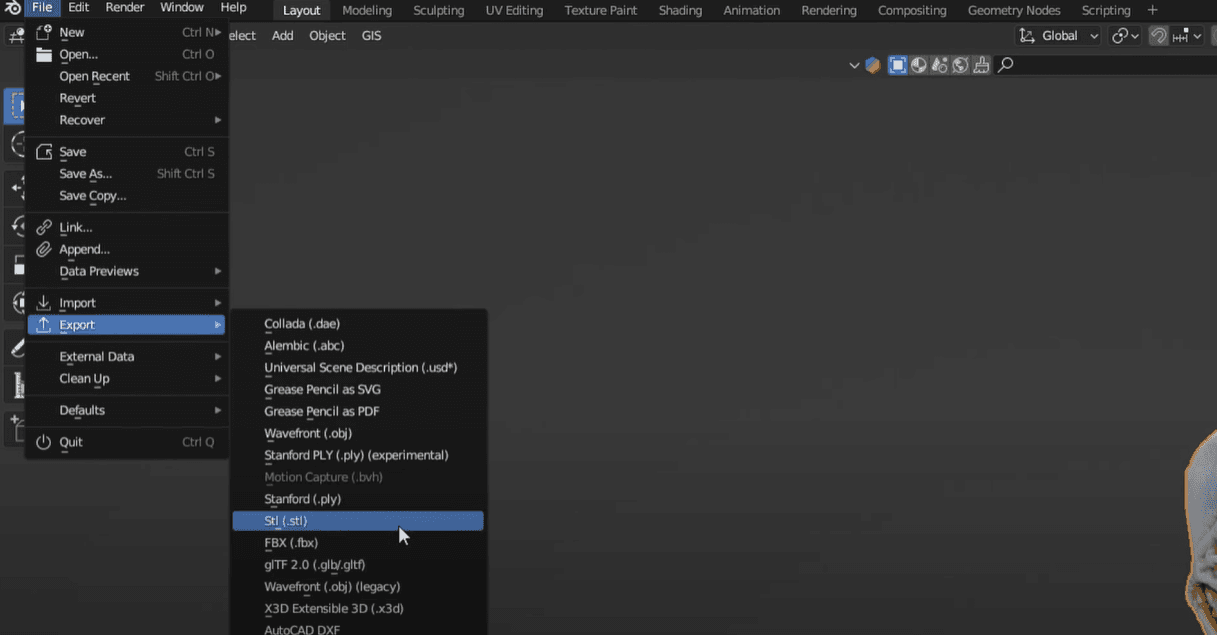

3. File > Export > STL
4. Check "Selection Only"
5. Save your file

Important Tips for Success

1. Start with quality AI models:

   • Generate your models at 3D AI Studio
   • Use high-resolution textures
   • Check UV mapping before starting

2. Watch your polygon count:

   • Don't go crazy with subdivision levels
   • Monitor Blender's performance
   • If it gets slow, reduce subdivision

3. Common problems and solutions:

   • Weird texture borders? Check UV coordinates
   • Too much detail? Lower displacement strength
   • Not enough detail? Increase subdivision level

Learn More

Want to see this process in action? Check out the full video tutorial that inspired this guide!

For the best results, start with high-quality AI-generated models from 3D AI Studio. Our models come with proper UV mapping and detailed textures, making them perfect for this enhancement process.

Remember to check out our Tutorials section for more helpful guides on working with AI-generated 3D models!
